Performance Data
| Rated Voltage (V) | 24 | Torque Constant (Nm/Arms) | 0.0395 |
| Rated Torque (Nm) | 0.09 | Back EMF Constant (Vrms/Krpm) | 0.9 |
| Rated Speed (rpm) | 12,000 | Terminal Resistance (mΩ) | 270 |
| Rated Power (W) | 112 | Terminal Inductance (mH) | 0.047 |
| Rated Current (Arms) | 7 | Torque Ripple | ≤6% |
| Peak Torque (Nm) | 0.27 | Number of Pole Pairs | 10 |
| Max Speed (rpm) | 12,000 | Torque to Weight Ratio (Nm/Kg) | 7.71 |
| Peak Current (Arms) | 21 | Weight (g) | 35 |
| Rotor Inertia (kgcm2) | 0.0146 | Insulation Class | F |
Mounting Dimension
| Stator Outer Diameter D/(mm) | 38.0 |
| Rotor Inner Diameter d/(mm) | 20.0 |
| Rotor Length I/(mm) | 6.0 |
| Stator Lam Length L’/(mm) | 6.6 |
| Stator Length L/(mm) | 11.8max |
| PCB Diameter G/(mm) | - |
| Winding Head Diameter g/(mm) | 36.0max |

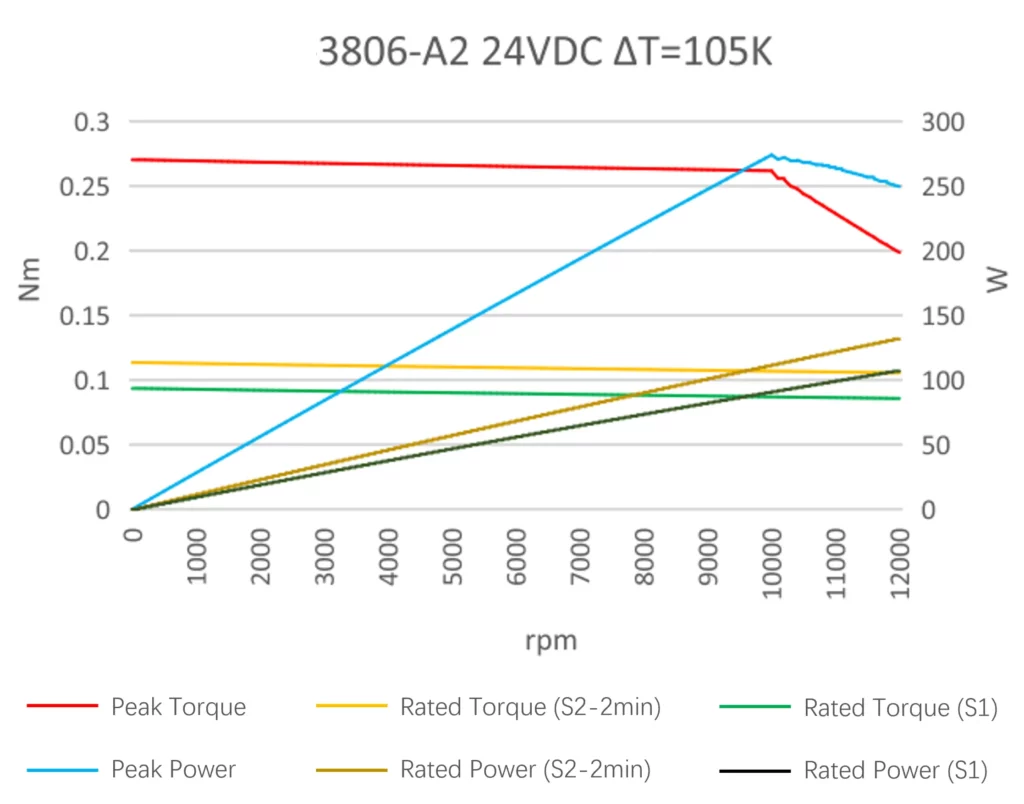

Motor Performance Curve
