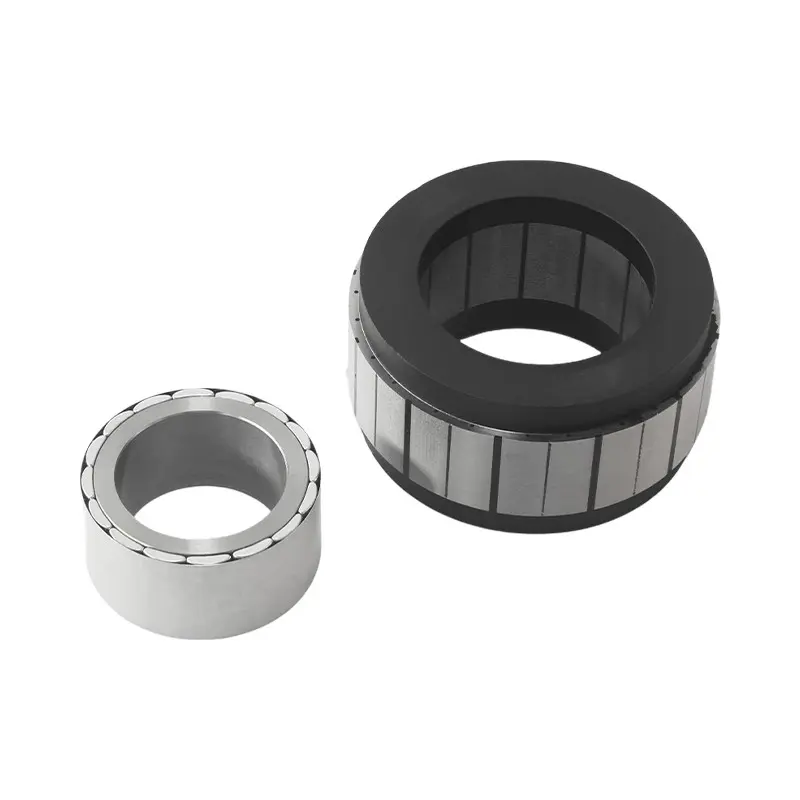

Eco Frameless Motor 10522

$160.00

67V | 6-15Nm | 1,850rpm | 1162W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Built with simplified manufacturing processes to reduce cost.
  • Compatible with a wide range of common motor drivers.
  • Designed for large-scale applications.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 15-25 business days.
SKU: EcoFM10522 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)67Torque Constant (Nm/Arms)0.25
Rated Torque (Nm)6Back EMF Constant (Vrms/Krpm)14
Rated Speed (rpm)1,850Terminal Resistance (mΩ)350
Rated Power (W)1,162Terminal Inductance (mH)0.15
Rated Current (Arms)24Torque RippleTBD
Peak Torque (Nm)15Number of Pole Pairs8
Max Speed (rpm)1,850Torque to Weight Ratio (Nm/Kg)22.5
Peak Current (Arms)72Weight (g)800
Rotor Inertia (kgcm2)0.8Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)105.0
Rotor Inner Diameter d/(mm)62.0
Rotor Length I/(mm)22.0
Stator Lam Length L’/(mm)22.0
Stator Length L/(mm)30.0
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)102.0
