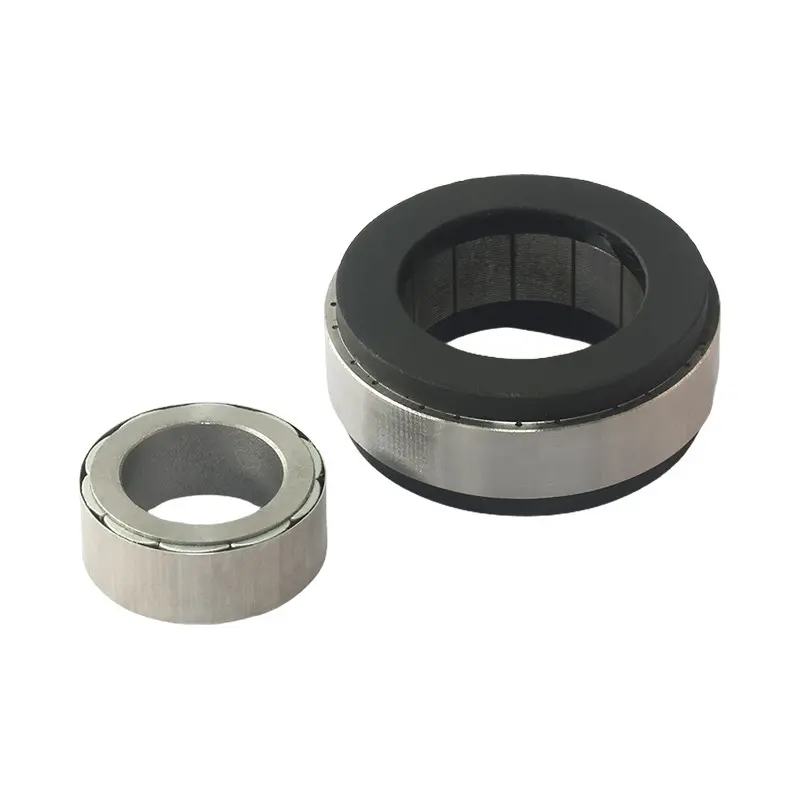

Eco Frameless Motor 3320

$75.00

48V | 0.16-0.48Nm | 3,000rpm | 50W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Built with simplified manufacturing processes to reduce cost.
  • Compatible with a wide range of common motor drivers.
  • Designed for large-scale applications.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 15-25 business days.
SKU: EcoFM3320 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.086
Rated Torque (Nm)0.16Back EMF Constant (Vrms/Krpm)5.19
Rated Speed (rpm)3,000Terminal Resistance (mΩ)2,600
Rated Power (W)50Terminal Inductance (mH)3.6
Rated Current (Arms)1.6Torque RippleTBD
Peak Torque (Nm)0.48Number of Pole Pairs4
Max Speed (rpm)3,000Torque to Weight Ratio (Nm/Kg)2.4
Peak Current (Arms)4.8Weight (g)200
Rotor Inertia (kgcm2)0.02Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)32.97
Rotor Inner Diameter d/(mm)8.0
Rotor Length I/(mm)20.0
Stator Lam Length L’/(mm)20.0
Stator Length L/(mm)33.0
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)31.0
