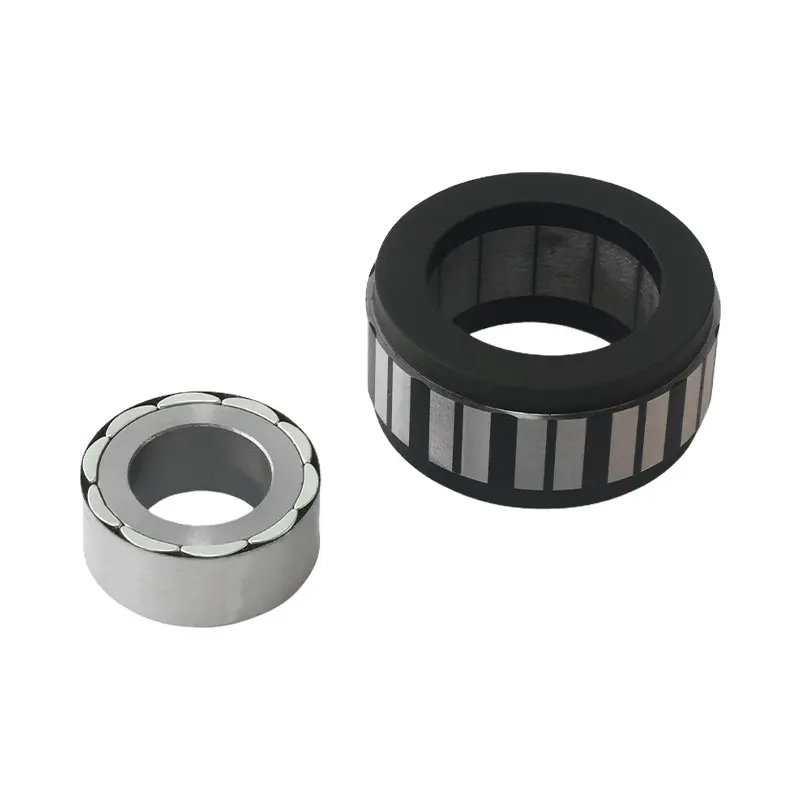

Eco Frameless Motor 5815

$85.00

48V | 0.64-1.28Nm | 3,000rpm | 200W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Built with simplified manufacturing processes to reduce cost.
  • Compatible with a wide range of common motor drivers.
  • Designed for large-scale applications.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 15-25 business days.
SKU: EcoFM5815 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.1
Rated Torque (Nm)0.64Back EMF Constant (Vrms/Krpm)8.5
Rated Speed (rpm)3,000Terminal Resistance (mΩ)900
Rated Power (W)200Terminal Inductance (mH)1
Rated Current (Arms)5.6Torque RippleTBD
Peak Torque (Nm)1.28Number of Pole Pairs8
Max Speed (rpm)3,000Torque to Weight Ratio (Nm/Kg)2.56
Peak Current (Arms)11.2Weight (g)500
Rotor Inertia (kgcm2)0.15Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)57.8
Rotor Inner Diameter d/(mm)27.0
Rotor Length I/(mm)15.0
Stator Lam Length L’/(mm)15.0
Stator Length L/(mm)26.0
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)56.0
