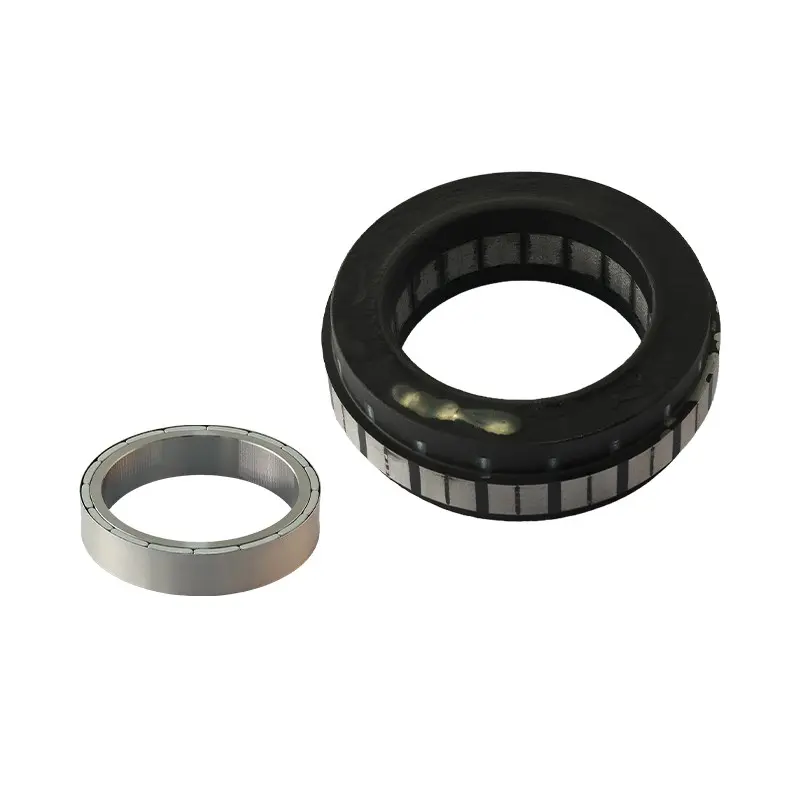

Eco Frameless Motor 8510

$110.00

67V | 1.4-4.2Nm | 2,100rpm | 307W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Built with simplified manufacturing processes to reduce cost.
  • Compatible with a wide range of common motor drivers.
  • Designed for large-scale applications.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 15-25 business days.
SKU: EcoFM8510 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)67Torque Constant (Nm/Arms)0.33
Rated Torque (Nm)1.4Back EMF Constant (Vrms/Krpm)19
Rated Speed (rpm)2,100Terminal Resistance (mΩ)3,000
Rated Power (W)307Terminal Inductance (mH)1.5
Rated Current (Arms)4.2Torque RippleTBD
Peak Torque (Nm)4.2Number of Pole Pairs8
Max Speed (rpm)2,100Torque to Weight Ratio (Nm/Kg)14
Peak Current (Arms)12.6Weight (g)300
Rotor Inertia (kgcm2)0.2Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)85.0
Rotor Inner Diameter d/(mm)45.0
Rotor Length I/(mm)10.0
Stator Lam Length L’/(mm)10.0
Stator Length L/(mm)24.0
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)82.0
