85-115

Pro Frameless Motor 11527-A2

$339.00 – $490.00

48V | 5-15.2Nm | 1,400rpm | 740W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM11527-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.223
Rated Torque (Nm)	5	Back EMF Constant (Vrms/rpm)	0.0135
Rated Speed (rpm)	1,400	Terminal Resistance (mΩ)	122
Rated Power (W)	740	Terminal Inductance (mH)	0.276
Rated Current (Arms)	26	Torque Ripple	≤2%
Peak Torque (Nm)	15.2	Number of Pole Pairs	15
Max Speed (rpm)	1,400	Torque to Weight Ratio (Nm/Kg)	15.05
Peak Current (Arms)	140	Weight (g)	1010
Rotor Inertia (kgcm²⁾	4.21	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	115.0
Rotor Inner Diameter d/(mm)	74.0
Rotor Length I/(mm)	27.0
Stator Lam Length L’/(mm)	27.8
Stator Length L/(mm)	38.8max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	113.0max

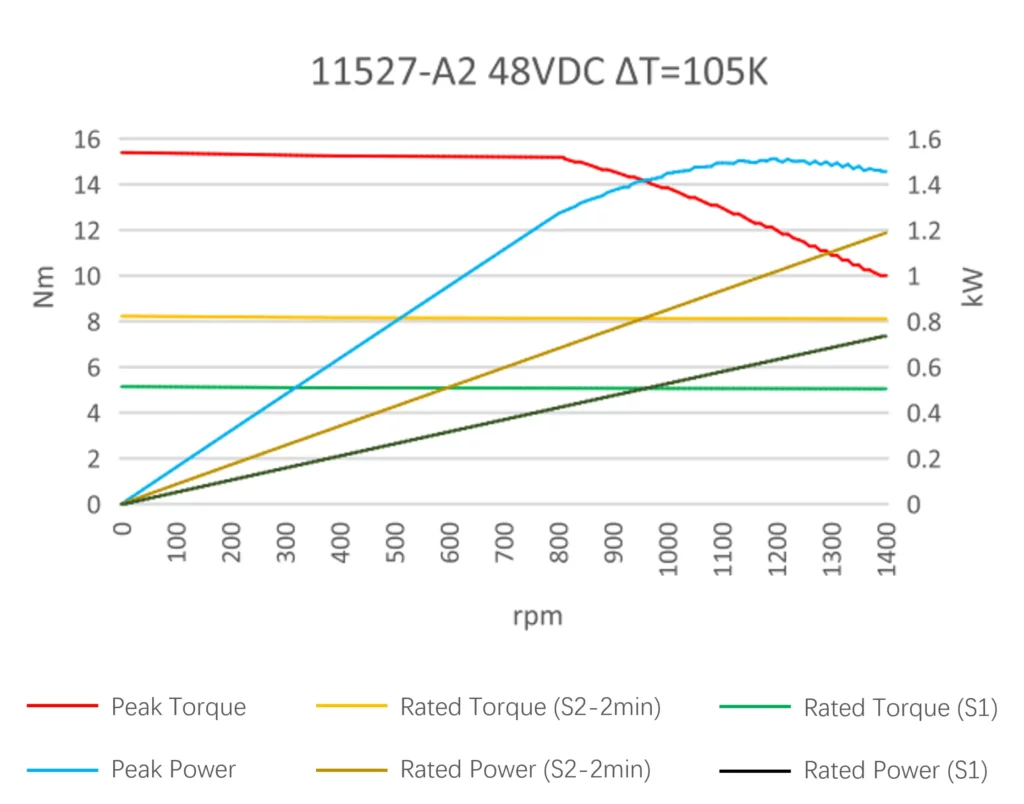

Motor Performance Curve

11527-A2
