Pro Frameless Motor 1405-A2

$999.00

12V | 3.4-9.5mNm | 1,600rpm | 0.58W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Smooth and precise motion control, with fast response.
  • Easy to integrate into embedded or custom systems.
  • Designed for large-scale applications.
  • High manufacturing precision ensures consistent performance.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 3 units, better pricing for large orders.
  • Customizable.
  • Delivery in 25-40 business days.
SKU: ProFM1405-A2 Category: Tags: ,

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)12Torque Constant (Nm/Arms)0.0049
Rated Torque (Nm)0.0034Back EMF Constant (Vrms/Krpm)0.3
Rated Speed (rpm)1,600Terminal Resistance (mΩ)2,640
Rated Power (W)0.58Terminal Inductance (mH)0.107
Rated Current (Arms)0.8Torque Ripple≤12%
Peak Torque (Nm)0.0095Number of Pole Pairs7
Max Speed (rpm)1,600Torque to Weight Ratio (Nm/Kg)1.58
Peak Current (Arms)2.2Weight (g)6
Rotor Inertia (kgcm2)0.0001Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)14.0
Rotor Inner Diameter d/(mm)5.2
Rotor Length I/(mm)5.0
Stator Lam Length L’/(mm)5.4
Stator Length L/(mm)9.3max
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)13.2max

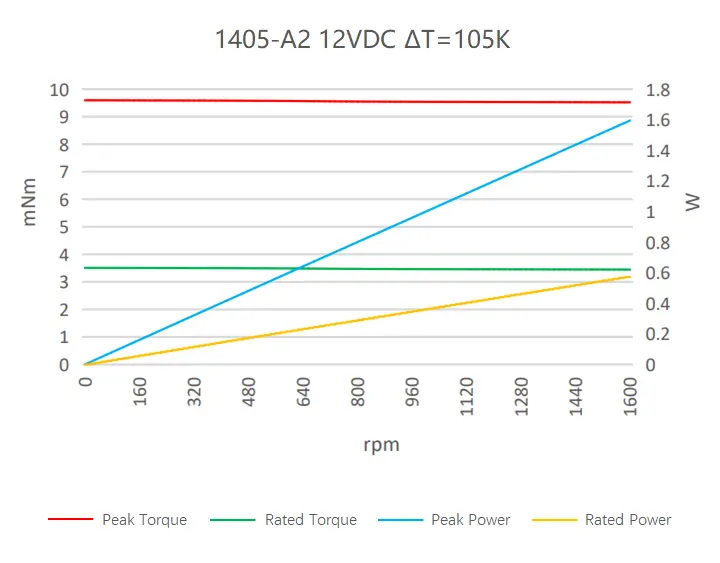

Motor Performance Curve
