Pro Frameless Motor 1606-B2

$799.00

12V | 6.7-13.6mNm | 1,500rpm | 1W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Smooth and precise motion control, with fast response.
  • Easy to integrate into embedded or custom systems.
  • Designed for large-scale applications.
  • High manufacturing precision ensures consistent performance.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 25-40 business days.
SKU: ProFM1606-B2 Category: Tags: ,

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)12Torque Constant (Nm/Arms)0.0076
Rated Torque (Nm)0.0067Back EMF Constant (Vrms/Krpm)0.46
Rated Speed (rpm)1,500Terminal Resistance (mΩ)3,080
Rated Power (W)1Terminal Inductance (mH)0.133
Rated Current (Arms)1Torque Ripple≤10%
Peak Torque (Nm)0.0136Number of Pole Pairs7
Max Speed (rpm)1,500Torque to Weight Ratio (Nm/Kg)1.94
Peak Current (Arms)2Weight (g)7
Rotor Inertia (kgcm2)0.0002Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)16.0
Rotor Inner Diameter d/(mm)6.6
Rotor Length I/(mm)6.0
Stator Lam Length L’/(mm)6.6
Stator Length L/(mm)11max
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)15max

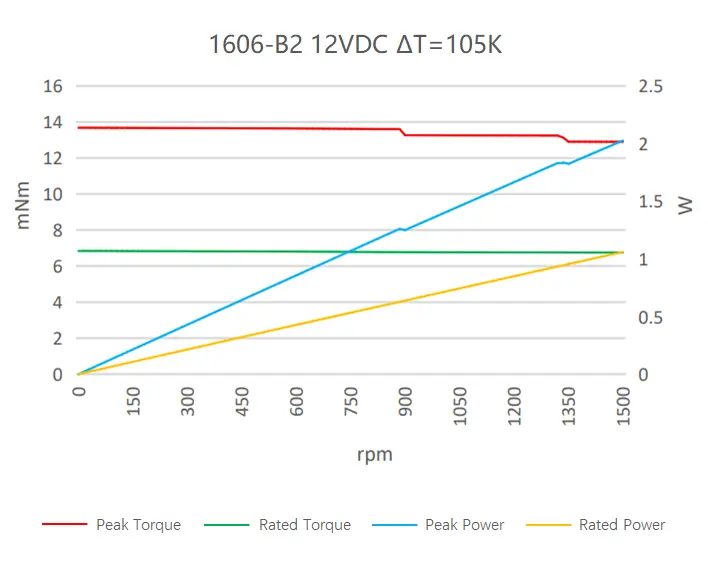

Motor Performance Curve
