Pro Frameless Motor 1915-A2

$349.00

24V | 0.02-0.07Nm | 8,000rpm | 17W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

SKU: ProFM1915-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	24	Torque Constant (Nm/Arms)	0.0265
Rated Torque (Nm)	0.02	Back EMF Constant (Vrms/rpm)	0.0016
Rated Speed (rpm)	8,000	Terminal Resistance (mΩ)	2,780
Rated Power (W)	17	Terminal Inductance (mH)	0.328
Rated Current (Arms)	1	Torque Ripple	≤2%
Peak Torque (Nm)	0.07	Number of Pole Pairs	7
Max Speed (rpm)	8,000	Torque to Weight Ratio (Nm/Kg)	5
Peak Current (Arms)	3	Weight (g)	14
Rotor Inertia (kgcm²⁾	0.0015	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	19.0
Rotor Inner Diameter d/(mm)	7.0
Rotor Length I/(mm)	15.0
Stator Lam Length L’/(mm)	15.0
Stator Length L/(mm)	19.0max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	-

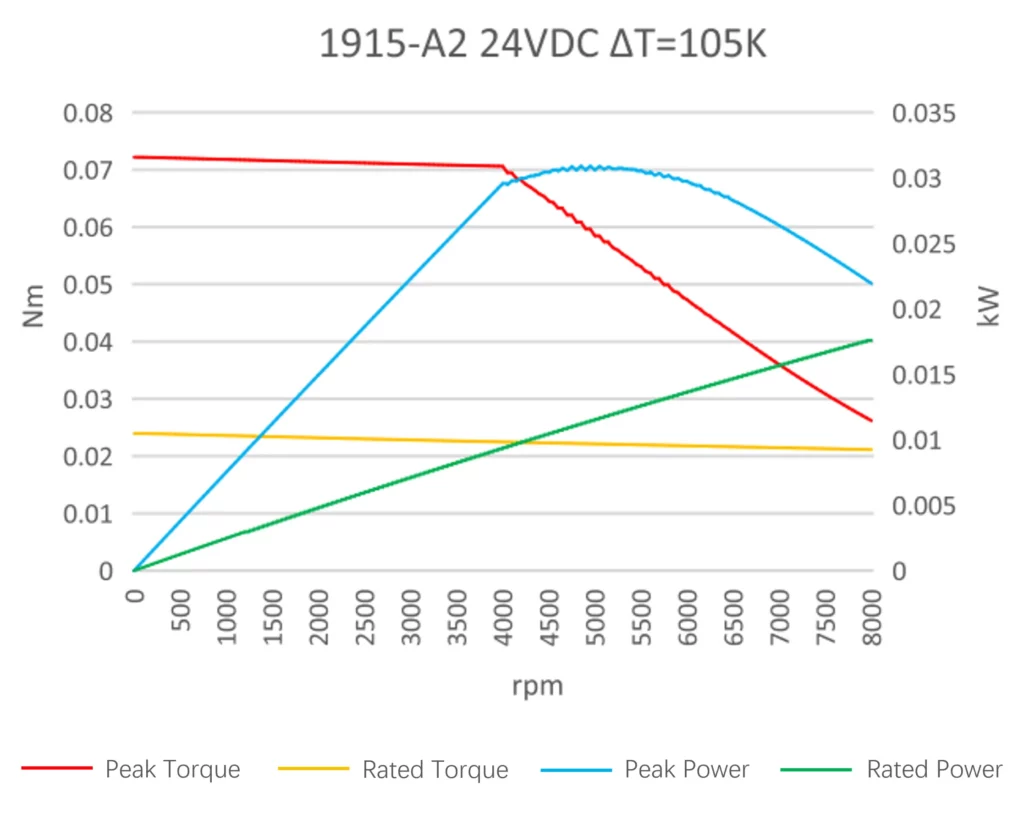

Motor Performance Curve

1915-A2
