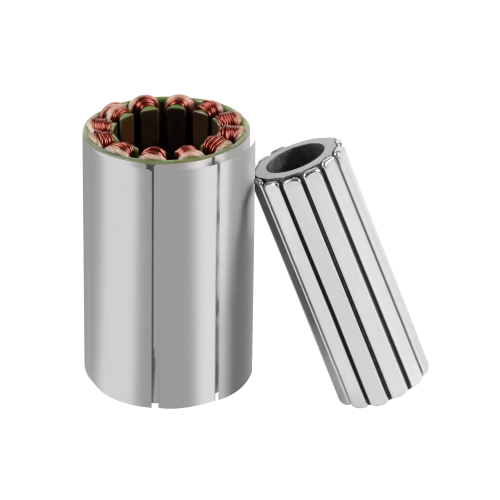

Pro Frameless Motor 1930-A2

$399.00

24V | 0.04-0.13Nm | 5,500rpm | 23W

  • This miniature frameless motor is designed for high-precision applications in extremely limited spaces.
  • Smooth and precise motion control, with fast response.
  • Easy to integrate into embedded or custom systems.
  • Designed for large-scale applications.
  • High manufacturing precision ensures consistent performance.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 3 units, better pricing for large orders.
  • Customizable.
  • Delivery in 15-25 business days.
SKU: ProFM1930-A2 Category: Tags: ,

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)24Torque Constant (Nm/Arms)0.0318
Rated Torque (Nm)0.04Back EMF Constant (Vrms/Krpm)1.92
Rated Speed (rpm)4,000Terminal Resistance (mΩ)2,180
Rated Power (W)23Terminal Inductance (mH)0.298
Rated Current (Arms)1.5Torque Ripple≤10%
Peak Torque (Nm)0.157Number of Pole Pairs7
Max Speed (rpm)4,000Torque to Weight Ratio (Nm/Kg)5.8
Peak Current (Arms)5.6Weight (g)27
Rotor Inertia (kgcm2)0.00286Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)19.0
Rotor Inner Diameter d/(mm)7.0
Rotor Length I/(mm)30.0
Stator Lam Length L’/(mm)30.0
Stator Length L/(mm)34.0max
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)-

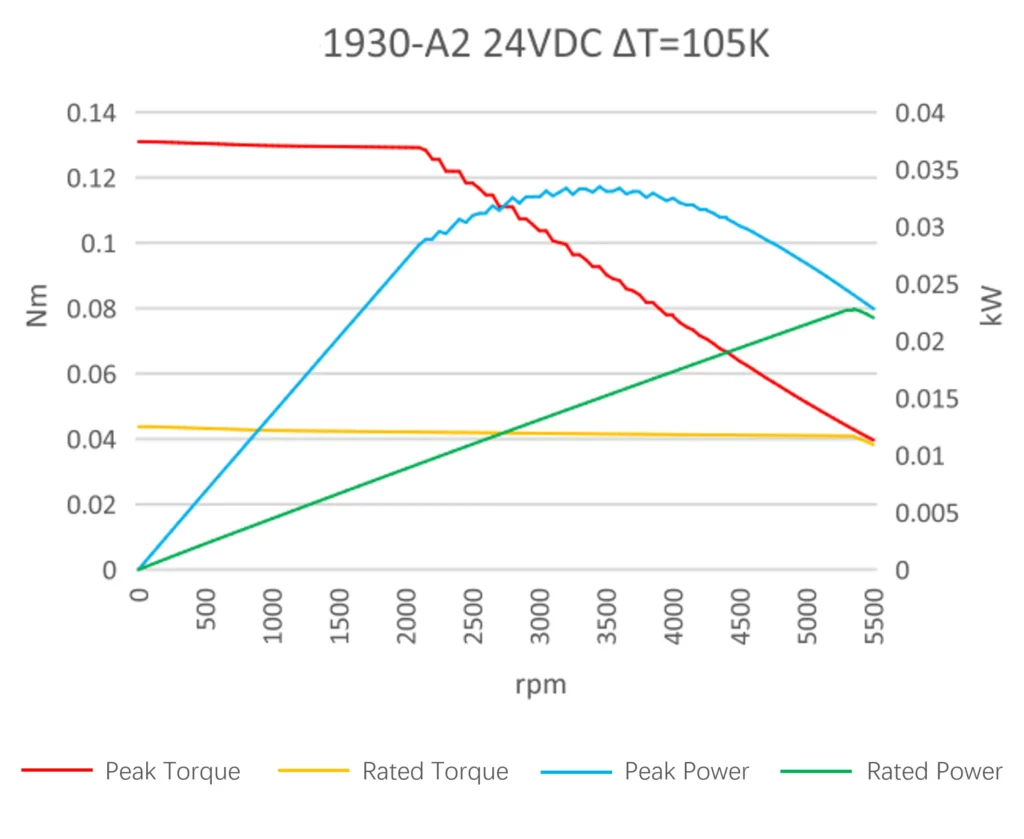

Motor Performance Curve
