Pro Frameless Motor 2516-A2

$189.00 – $315.00

24V | 0.069-0.195Nm | 6,000rpm | 44W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM2516-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	24	Torque Constant (Nm/Arms)	0.028
Rated Torque (Nm)	0.069	Back EMF Constant (Vrms/rpm)	0.0017
Rated Speed (rpm)	6,000	Terminal Resistance (mΩ)	1,270
Rated Power (W)	44	Terminal Inductance (mH)	0.22
Rated Current (Arms)	2.8	Torque Ripple	≤12%
Peak Torque (Nm)	0.195	Number of Pole Pairs	7
Max Speed (rpm)	6,000	Torque to Weight Ratio (Nm/Kg)	5.27
Peak Current (Arms)	21	Weight (g)	37
Rotor Inertia (kgcm²⁾	0.0072	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	25.0
Rotor Inner Diameter d/(mm)	11.6
Rotor Length I/(mm)	16.0
Stator Lam Length L’/(mm)	16.5
Stator Length L/(mm)	20.0max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	24.0max

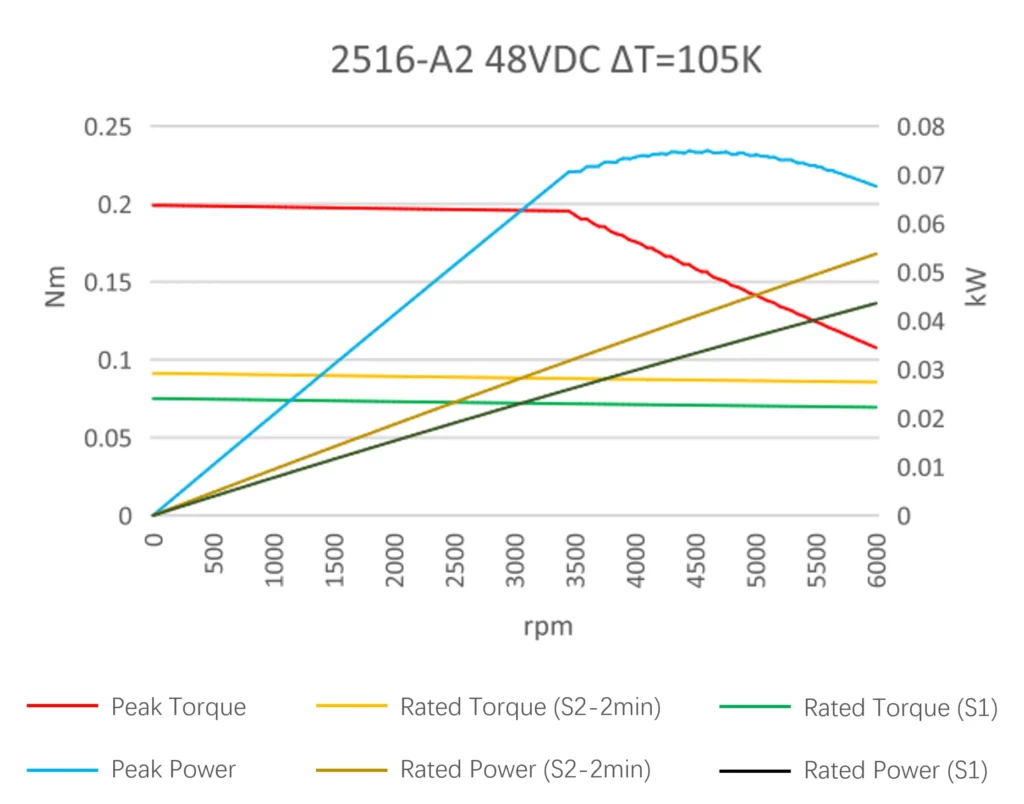

Motor Performance Curve

2516-A2
