Pro Frameless Motor 3812-B2

$199.00 – $294.00

48V | 0.189-0.5Nm | 6,000rpm | 119W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM3812-B2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.064
Rated Torque (Nm)	0.189	Back EMF Constant (Vrms/rpm)	0.0039
Rated Speed (rpm)	6,000	Terminal Resistance (mΩ)	1,600
Rated Power (W)	119	Terminal Inductance (mH)	0.355
Rated Current (Arms)	3.4	Torque Ripple	≤6%
Peak Torque (Nm)	0.502	Number of Pole Pairs	10
Max Speed (rpm)	6,000	Torque to Weight Ratio (Nm/Kg)	8.37
Peak Current (Arms)	9.8	Weight (g)	60
Rotor Inertia (kgcm²⁾	0.029	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	38.0
Rotor Inner Diameter d/(mm)	20.0
Rotor Length I/(mm)	12.0
Stator Lam Length L’/(mm)	12.4
Stator Length L/(mm)	18.0max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	36.0max

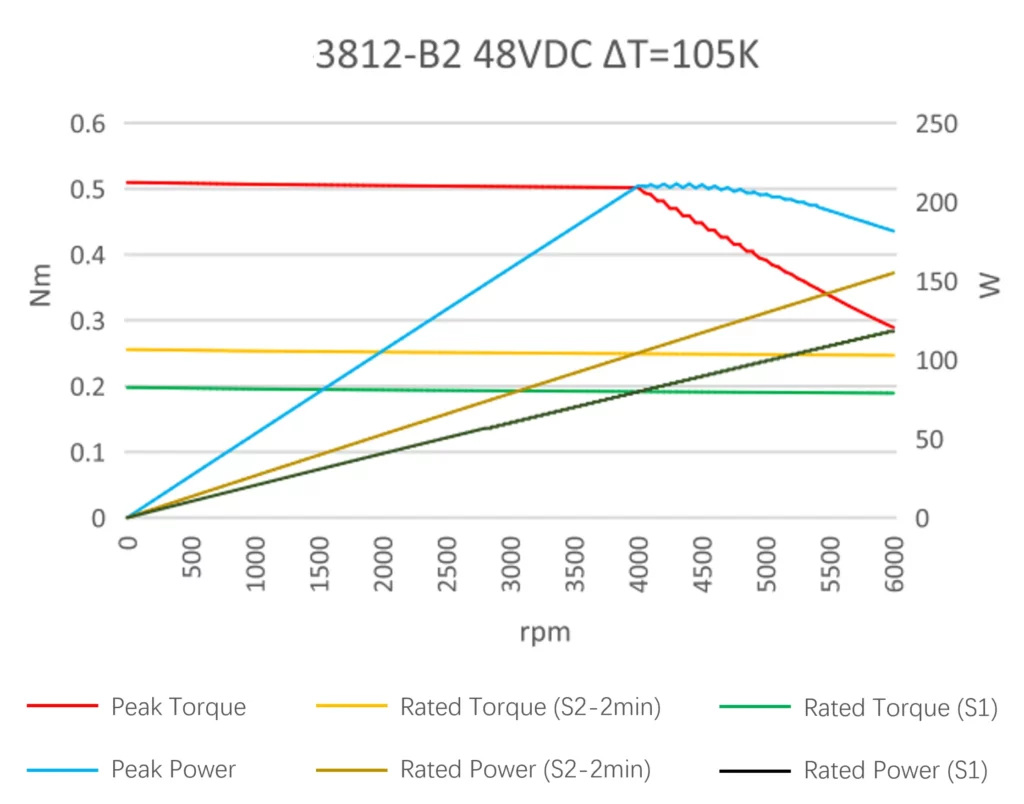

Motor Performance Curve

3812-B2
