Pro Frameless Motor 5010-A2

$169.00 – $252.00

48V | 0.32-1.02Nm | 6,000rpm | 200W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM5010-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.0667
Rated Torque (Nm)	0.32	Back EMF Constant (Vrms/rpm)	0.004
Rated Speed (rpm)	6,000	Terminal Resistance (mΩ)	570
Rated Power (W)	200	Terminal Inductance (mH)	0.253
Rated Current (Arms)	5.5	Torque Ripple	≤2.8%
Peak Torque (Nm)	1.02	Number of Pole Pairs	10
Max Speed (rpm)	6,000	Torque to Weight Ratio (Nm/Kg)	12.75
Peak Current (Arms)	18	Weight (g)	80
Rotor Inertia (kgcm²⁾	0.062	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	50.0
Rotor Inner Diameter d/(mm)	30.0
Rotor Length I/(mm)	10.0
Stator Lam Length L’/(mm)	10.6
Stator Length L/(mm)	17.8max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	49.0max

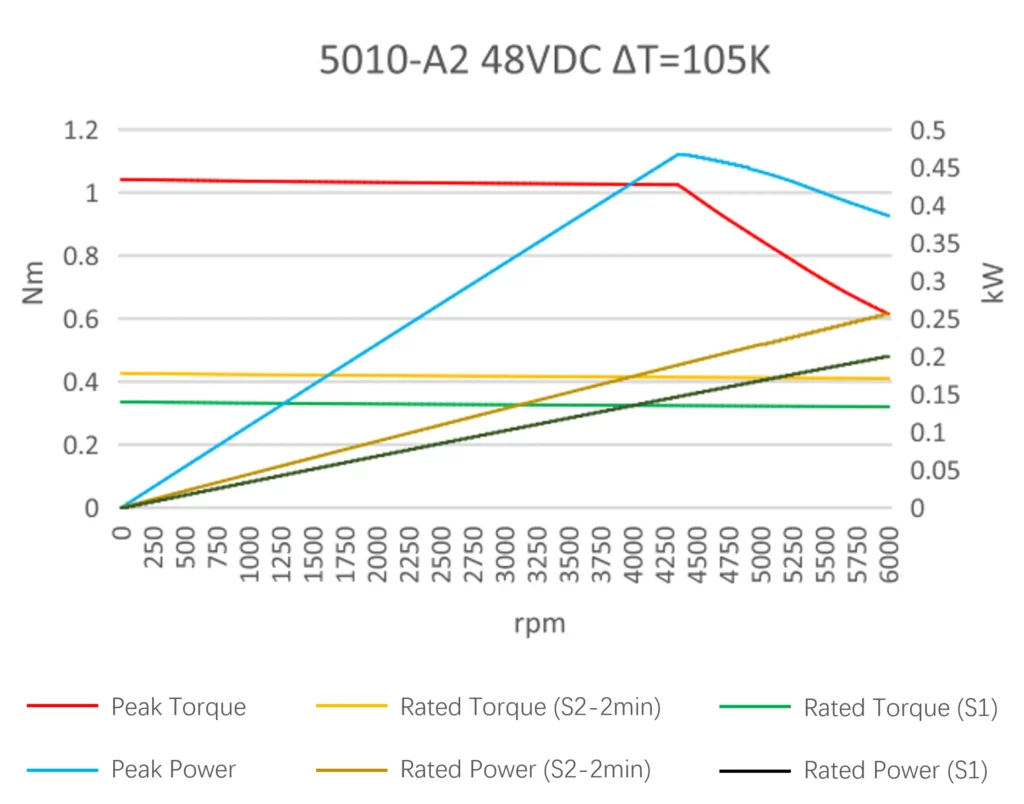

Motor Performance Curve

5010-A2
