Pro Frameless Motor 7012-B2

$169.00 – $252.00

48V | 0.77-2.37Nm | 3,000rpm | 4240W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM7012-B2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.118
Rated Torque (Nm)	0.77	Back EMF Constant (Vrms/rpm)	0.0071
Rated Speed (rpm)	3,000	Terminal Resistance (mΩ)	509
Rated Power (W)	240	Terminal Inductance (mH)	0.568
Rated Current (Arms)	7.5	Torque Ripple	≤2%
Peak Torque (Nm)	2.37	Number of Pole Pairs	10
Max Speed (rpm)	3,000	Torque to Weight Ratio (Nm/Kg)	12.15
Peak Current (Arms)	30	Weight (g)	195
Rotor Inertia (kgcm²⁾	0.22	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	70.0
Rotor Inner Diameter d/(mm)	42.0
Rotor Length I/(mm)	12.0
Stator Lam Length L’/(mm)	12.8
Stator Length L/(mm)	22.8max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	68.0max

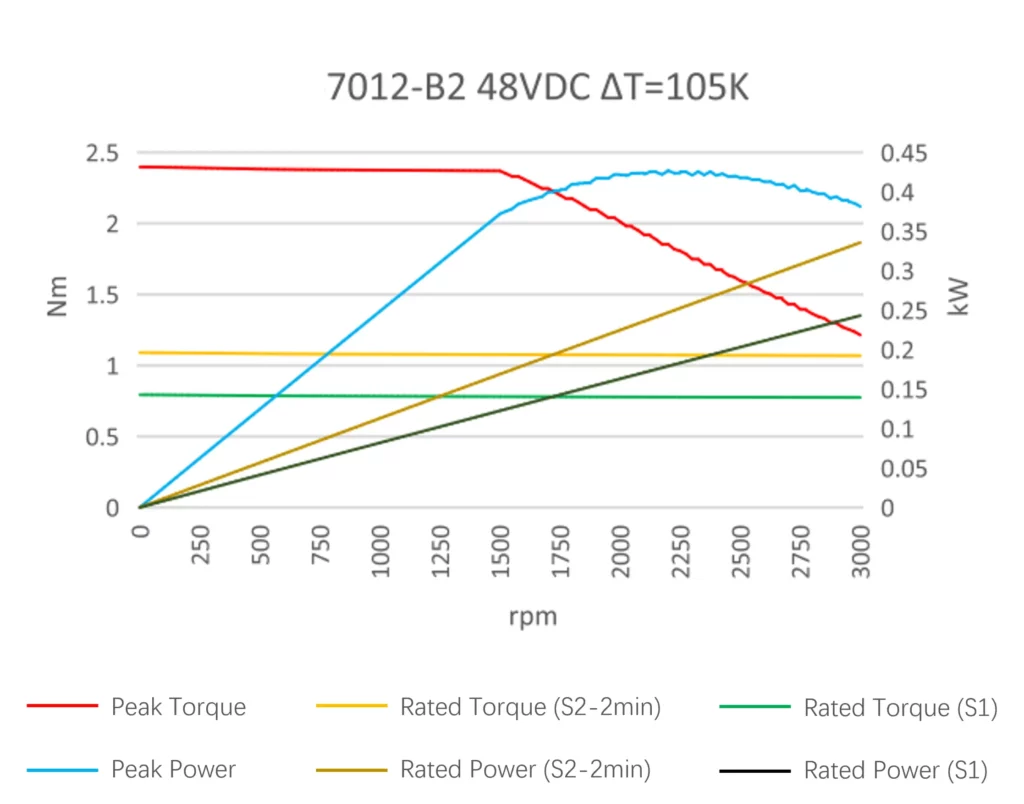

Motor Performance Curve

7012-B2
