Pro Frameless Motor 7020-A2

$189.00

48V | 1.4-4.2Nm | 2,500rpm | 370W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Prototype orders supported, MOQ: 3 units, better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

SKU: ProFM7020-A2 Category: Frameless Motors Tags: Pro Series, Pro Series Picks

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.1285
Rated Torque (Nm)	1.4	Back EMF Constant (Vrms/Krpm)	7.8
Rated Speed (rpm)	2,500	Terminal Resistance (mΩ)	289
Rated Power (W)	370	Terminal Inductance (mH)	0.34
Rated Current (Arms)	12.5	Torque Ripple	≤2%
Peak Torque (Nm)	4.2	Number of Pole Pairs	10
Max Speed (rpm)	2,500	Torque to Weight Ratio (Nm/Kg)	14.38
Peak Current (Arms)	50	Weight (g)	292
Rotor Inertia (kgcm²⁾	0.44	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	70.0
Rotor Inner Diameter d/(mm)	42.0
Rotor Length I/(mm)	20.0
Stator Lam Length L’/(mm)	20.8
Stator Length L/(mm)	30.8max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	68.0max

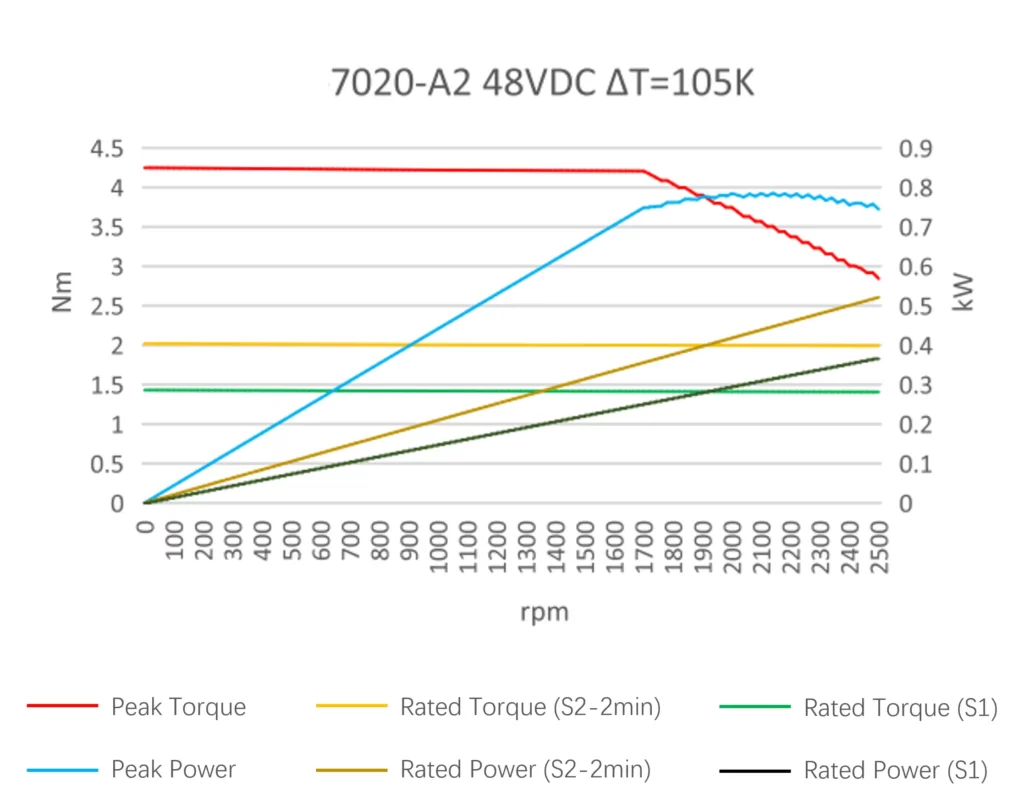

Motor Performance Curve

7020-A2
