85-115

Pro Frameless Motor 8507-A2

$209.00 – $308.00

48V | 0.61-2.07Nm | 8,000rpm | 510W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM8507-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.046
Rated Torque (Nm)	0.61	Back EMF Constant (Vrms/rpm)	0.0028
Rated Speed (rpm)	8,000	Terminal Resistance (mΩ)	97
Rated Power (W)	510	Terminal Inductance (mH)	0.1
Rated Current (Arms)	15.5	Torque Ripple	≤2%
Peak Torque (Nm)	2.07	Number of Pole Pairs	10
Max Speed (rpm)	8,000	Torque to Weight Ratio (Nm/Kg)	11.5
Peak Current (Arms)	76	Weight (g)	180
Rotor Inertia (kgcm²⁾	0.33	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	85.0
Rotor Inner Diameter d/(mm)	52.0
Rotor Length I/(mm)	7.0
Stator Lam Length L’/(mm)	7.8
Stator Length L/(mm)	18.8max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	83.0max

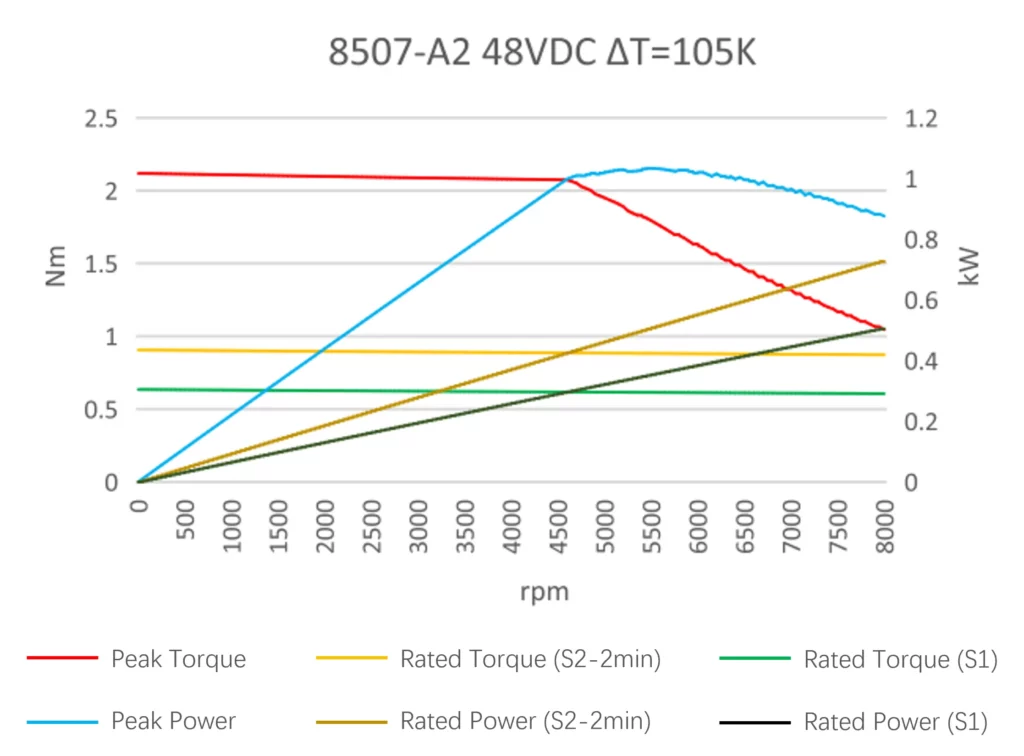

Motor Performance Curve

8507-A2
