Pro Frameless Motor 9413-A2

$279.00 – $406.00

48V | 1.55-5.24Nm | 5,500rpm | 900W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM9413-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.088
Rated Torque (Nm)	1.55	Back EMF Constant (Vrms/rpm)	0.0053
Rated Speed (rpm)	5,500	Terminal Resistance (mΩ)	74
Rated Power (W)	900	Terminal Inductance (mH)	0.107
Rated Current (Arms)	20	Torque Ripple	≤2%
Peak Torque (Nm)	5.24	Number of Pole Pairs	10
Max Speed (rpm)	5,500	Torque to Weight Ratio (Nm/Kg)	13.1
Peak Current (Arms)	80	Weight (g)	400
Rotor Inertia (kgcm²⁾	1.01	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	94.0
Rotor Inner Diameter d/(mm)	56.0
Rotor Length I/(mm)	13.0
Stator Lam Length L’/(mm)	13.6
Stator Length L/(mm)	23.6max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	92.0max

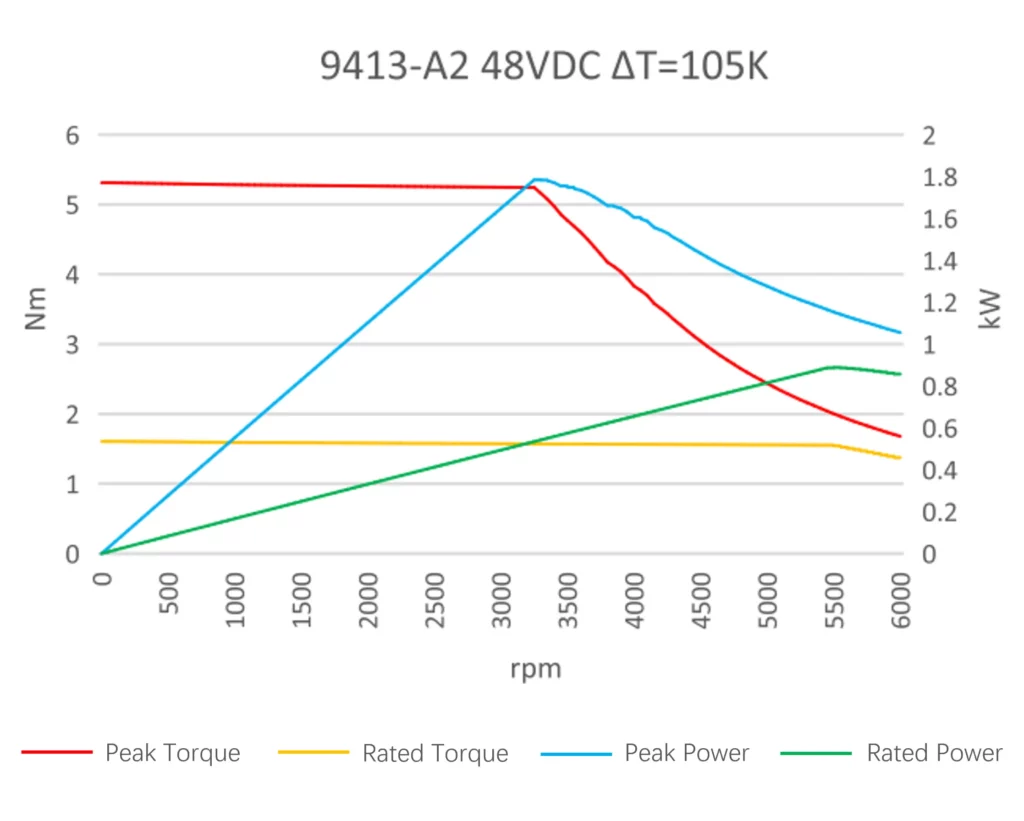

Motor Performance Curve

9413-A2
