Pro Frameless Motor 9432-A2

$309.00 – $359.00

48V | 3.5-7.9Nm | 4,400rpm | 1600W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM9432-A2 Category: Frameless Motors Tags: Pro Series, Pro Series Picks

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.1
Rated Torque (Nm)	3.5	Back EMF Constant (Vrms/Krpm)	6.4
Rated Speed (rpm)	4,400	Terminal Resistance (mΩ)	31
Rated Power (W)	1,600	Terminal Inductance (mH)	0.068
Rated Current (Arms)	35	Torque Ripple	≤2%
Peak Torque (Nm)	7.9	Number of Pole Pairs	10
Max Speed (rpm)	4,400	Torque to Weight Ratio (Nm/Kg)	9.88
Peak Current (Arms)	80	Weight (g)	800
Rotor Inertia (kgcm²⁾	2.71	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	94.0
Rotor Inner Diameter d/(mm)	56.0
Rotor Length I/(mm)	32.0
Stator Lam Length L’/(mm)	32.8
Stator Length L/(mm)	42.3max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	92.0max

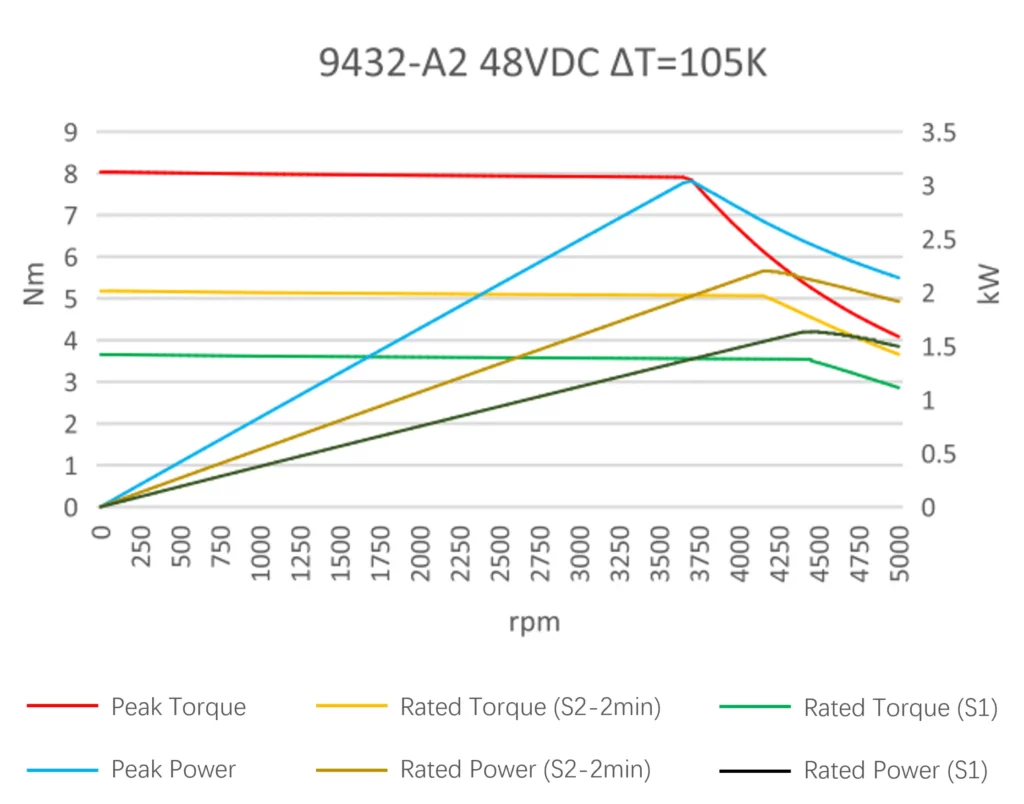

Motor Performance Curve

9432-A2
