Pro Joint Actuator 1629

$1,300.00

12V | 0.13-0.35Nm | 40rpm | 100:1

  • This integrated actuator is designed for dexterous hand finger joints applications.
  • Ultra-compact structure with optimized torque output, featuring a 3-stage planetary gearbox.
  • Ideal for precise motion control in space-constrained finger mechanisms.
  • Integrated driver and encoder enable stable operation and simplified system integration.
  • Modular design supports flexible multi-joint finger configurations.
  • RS485 communication interface for reliable multi-actuator control.
  • Designed for large-scale deployment with optimized cost-performance balance.
  • Mass production validated, with mature processes ensuring consistent and reliable product performance.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 10 units, better pricing for large orders.
  • Delivery in 25-40 business days.
SKU: ProJA 1629 Category:

Actuator Performance Data

Rated Voltage (V)12Resolution (bit)14
Rated Torque (Nm)0.13Multi-turn (YES/NO)NO
Peak Torque (Nm)0.35Communication InterfaceRS485
Rated Speed (rpm)40EncoderSingle Encoder
Max Speed (rpm)50DriverIntegrated
Reduction Ratio100Weight(Kg)0.025
Data may change with product updates.

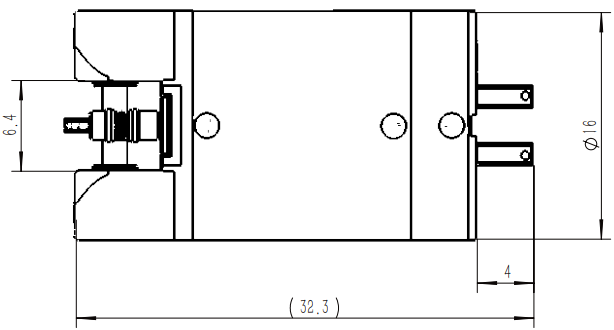

Mounting Dimension

Outer Diameter(mm)16
Length(mm)32.3
Center Distance(mm)29
