Ultra Frameless Motor 3807-A1

$439.00 – $519.00

24V | 0.102-0.32Nm | 9100rpm | 97W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM3807-A1 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)24Torque Constant (Nm/Arms)0.021
Rated Torque (Nm)0.102Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)9,100Terminal Resistance (mΩ)420
Rated Power (W)97Terminal Inductance (mH)0.2
Rated Current (Arms)4.7Torque RippleTBD
Peak Torque (Nm)0.32Number of Pole Pairs7
Max Speed (rpm)10,000Torque to Weight Ratio (Nm/Kg)6.04
Peak Current (Arms)TBDWeight (g)53
Rotor Inertia (kgcm2)0.0094Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)38.0
Rotor Inner Diameter d/(mm)18.0
Rotor Length I/(mm)8.0
Stator Lam Length L’/(mm)7.4
Stator Length L/(mm)15.2
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)36.0

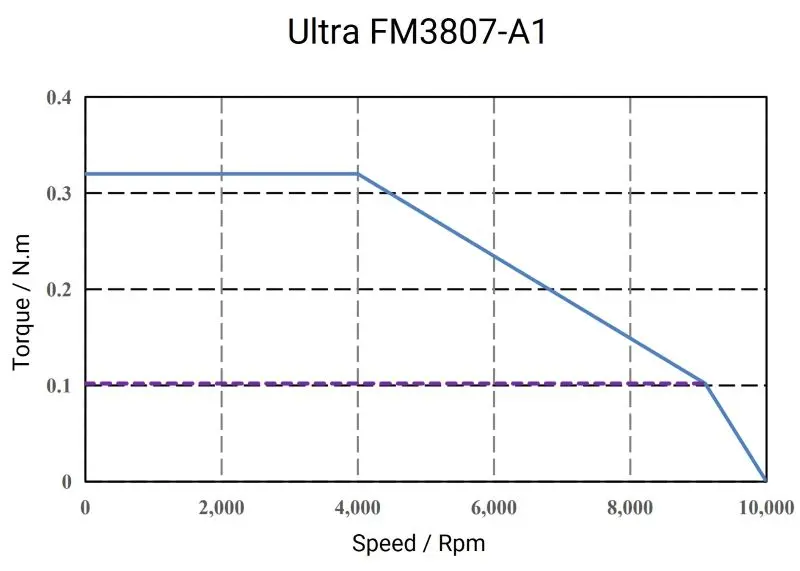

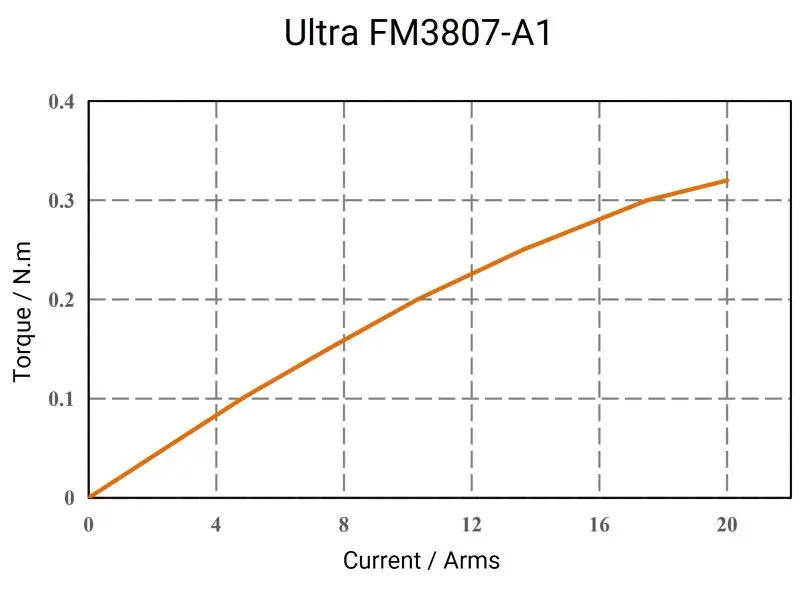

Motor Performance Curve
