Ultra Frameless Motor 5009-A2

$399.00

48V | 0.3-1Nm | 8600rpm | 270W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 3 units, better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM5009-A2 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.032
Rated Torque (Nm)0.3Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)8,600Terminal Resistance (mΩ)200
Rated Power (W)270Terminal Inductance (mH)0.08
Rated Current (Arms)9.2Torque RippleTBD
Peak Torque (Nm)1Number of Pole Pairs7
Max Speed (rpm)11,200Torque to Weight Ratio (Nm/Kg)12.35
Peak Current (Arms)TBDWeight (g)81
Rotor Inertia (kgcm2)0.04Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)50.0
Rotor Inner Diameter d/(mm)30.0
Rotor Length I/(mm)9.0
Stator Lam Length L’/(mm)8.6
Stator Length L/(mm)17.4
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)48.2

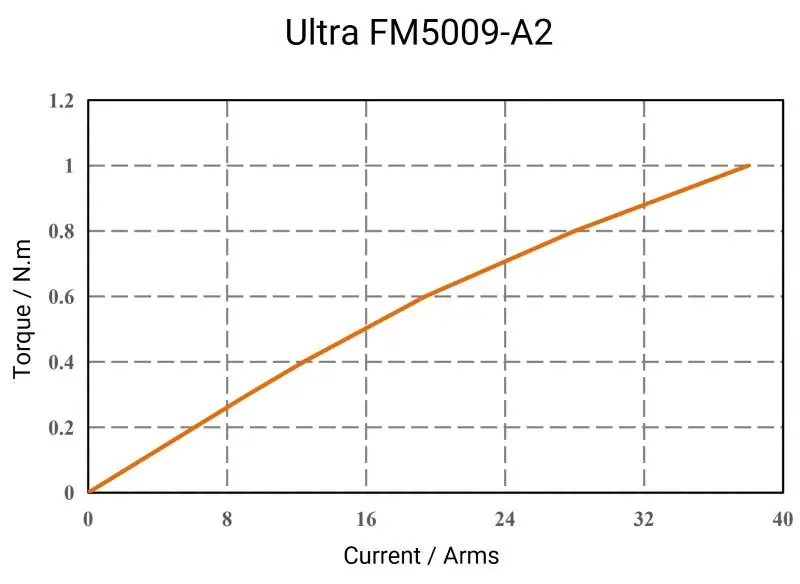

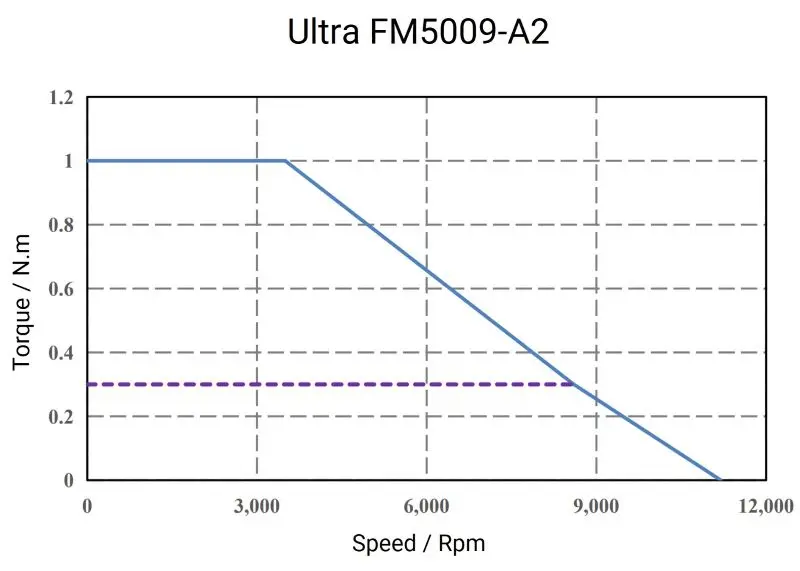

Motor Performance Curve
