Ultra Frameless Motor 6013-A2

$379.00 – $459.00

48V | 0.6-2.3Nm | 6700rpm | 421W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM6013-A2 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.046
Rated Torque (Nm)0.6Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)6,700Terminal Resistance (mΩ)130
Rated Power (W)421Terminal Inductance (mH)0.09
Rated Current (Arms)13Torque RippleTBD
Peak Torque (Nm)2.3Number of Pole Pairs10
Max Speed (rpm)9,400Torque to Weight Ratio (Nm/Kg)12.43
Peak Current (Arms)TBDWeight (g)185
Rotor Inertia (kgcm2)0.13Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)60.0
Rotor Inner Diameter d/(mm)35.0
Rotor Length I/(mm)13.0
Stator Lam Length L’/(mm)13.4
Stator Length L/(mm)24.1
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)58.8max

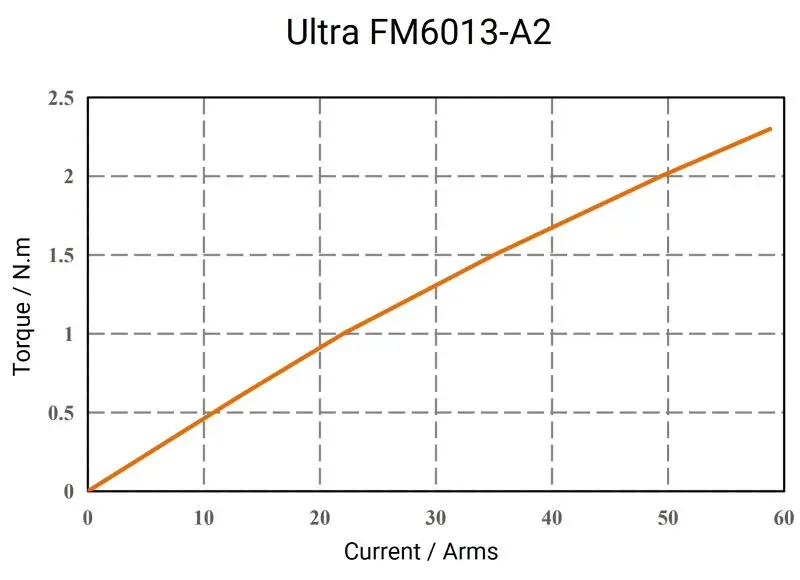

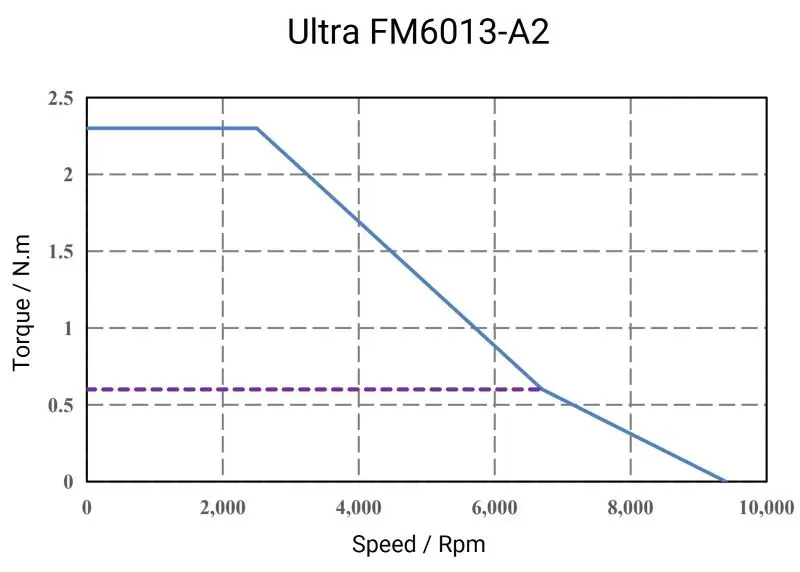

Motor Performance Curve
