Ultra Frameless Motor 6024-A1

$379.00 – $459.00

48V | 1.15-3.9Nm | 2700rpm | 325W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Supports small batch prototype orders, with better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM6024-A1 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.118
Rated Torque (Nm)1.15Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)2,700Terminal Resistance (mΩ)360
Rated Power (W)325Terminal Inductance (mH)0.38
Rated Current (Arms)9.7Torque RippleTBD
Peak Torque (Nm)3.9Number of Pole Pairs10
Max Speed (rpm)3,400Torque to Weight Ratio (Nm/Kg)13.13
Peak Current (Arms)TBDWeight (g)297
Rotor Inertia (kgcm2)0.23Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)60.0
Rotor Inner Diameter d/(mm)35.0
Rotor Length I/(mm)24.0
Stator Lam Length L’/(mm)24.4
Stator Length L/(mm)35.1
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)58.8max

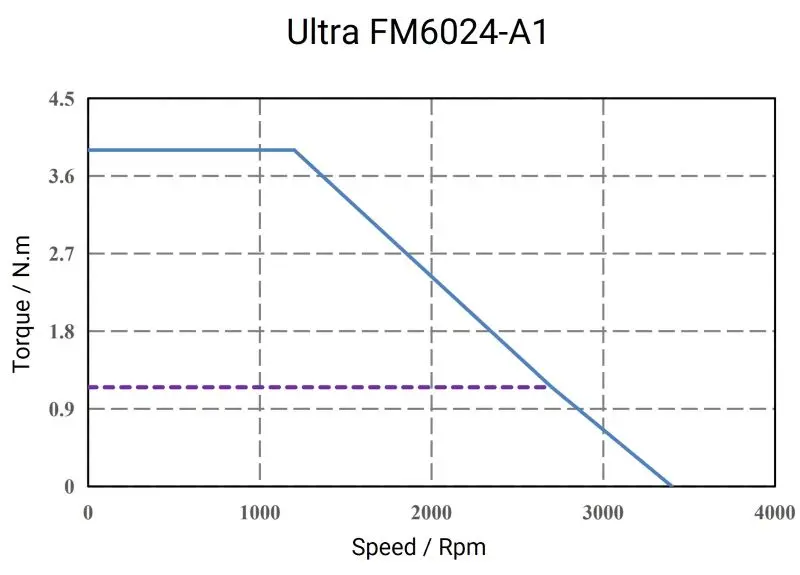

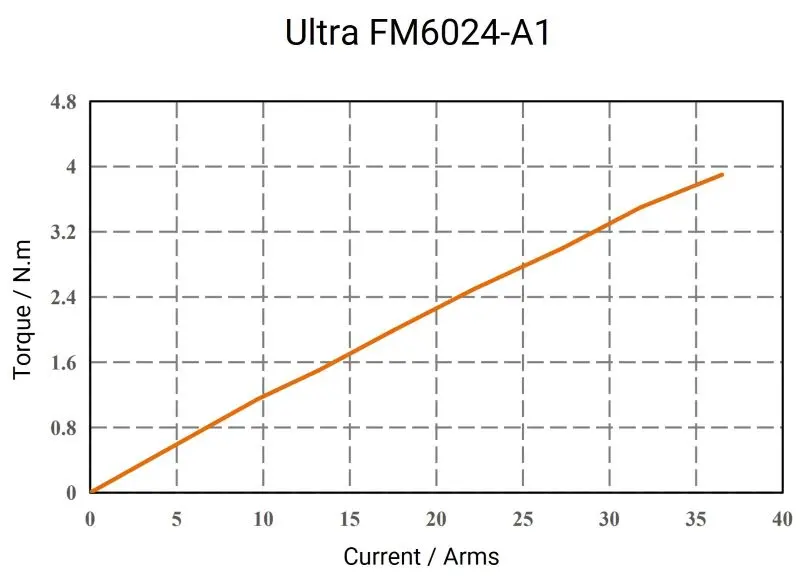

Motor Performance Curve
