Ultra Frameless Motor 7011-A2

$379.00

48V | 0.7-2.5Nm | 6300rpm | 462W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 3 units, better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM7011-A2 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.052
Rated Torque (Nm)0.7Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)6,300Terminal Resistance (mΩ)100
Rated Power (W)462Terminal Inductance (mH)0.09
Rated Current (Arms)13.4Torque RippleTBD
Peak Torque (Nm)2.5Number of Pole Pairs10
Max Speed (rpm)8,400Torque to Weight Ratio (Nm/Kg)11.36
Peak Current (Arms)TBDWeight (g)220
Rotor Inertia (kgcm2)0.17Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)70.0
Rotor Inner Diameter d/(mm)42.0
Rotor Length I/(mm)11.0
Stator Lam Length L’/(mm)11.4
Stator Length L/(mm)22.5
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)68max

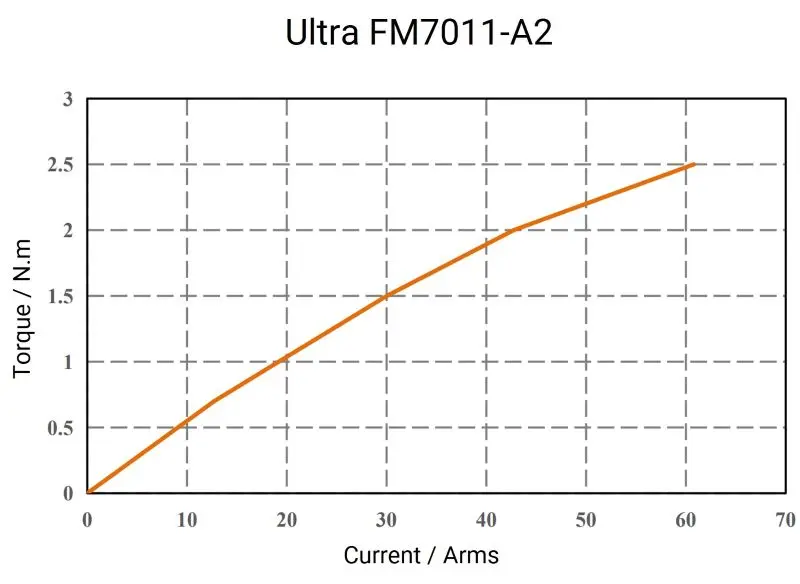

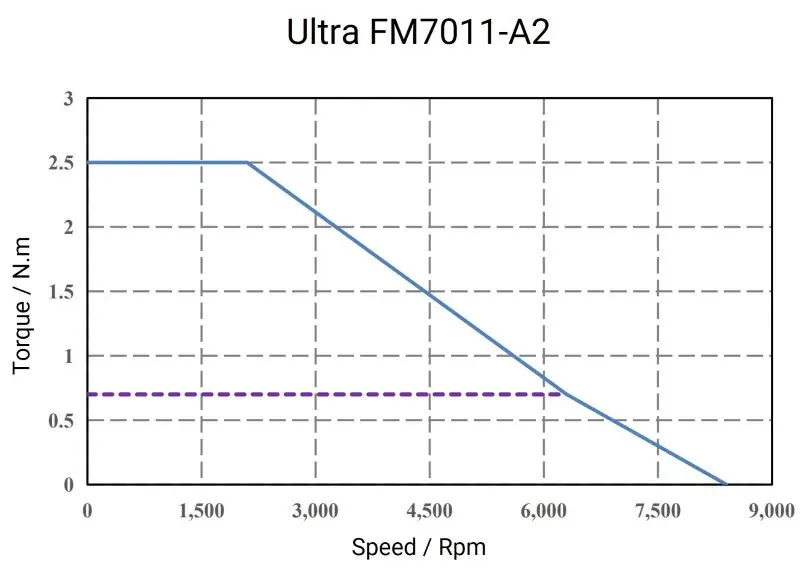

Motor Performance Curve
