Ultra Frameless Motor 8524-B1

$399.00

48V | 2.6-9.2Nm | 1700rpm | 463W

  • This frameless dc motor features High torque density
  • High power density
  • Low torque ripple
  • Higher motor constant
  • Improved heat dissipation
  • Supports installation of Hall sensors and temperature sensors.
  • Provides a 1-year warranty.
  • Prototype orders supported, MOQ: 3 units, better pricing for large orders.
  • Customizable.
  • Delivery in 20-30 business days.
SKU: UltraFM8524-B1 Category:

Register or log in to get a quote online directly.

Get a Quote

Performance Data

Rated Voltage (V)48Torque Constant (Nm/Arms)0.208
Rated Torque (Nm)2.6Back EMF Constant (Vrms/Krpm)TBD
Rated Speed (rpm)1,700Terminal Resistance (mΩ)300
Rated Power (W)463Terminal Inductance (mH)0.5
Rated Current (Arms)12.5Torque RippleTBD
Peak Torque (Nm)9.2Number of Pole Pairs10
Max Speed (rpm)2,100Torque to Weight Ratio (Nm/Kg)15.44
Peak Current (Arms)TBDWeight (g)596
Rotor Inertia (kgcm2)0.92Insulation ClassF
Data may change with product updates.

Mounting Dimension

frameless motor size chart
Stator Outer Diameter D/(mm)85.0
Rotor Inner Diameter d/(mm)52.0
Rotor Length I/(mm)24.0
Stator Lam Length L’/(mm)24.4
Stator Length L/(mm)36.9
PCB Diameter G/(mm)-
Winding Head Diameter g/(mm)83.5max

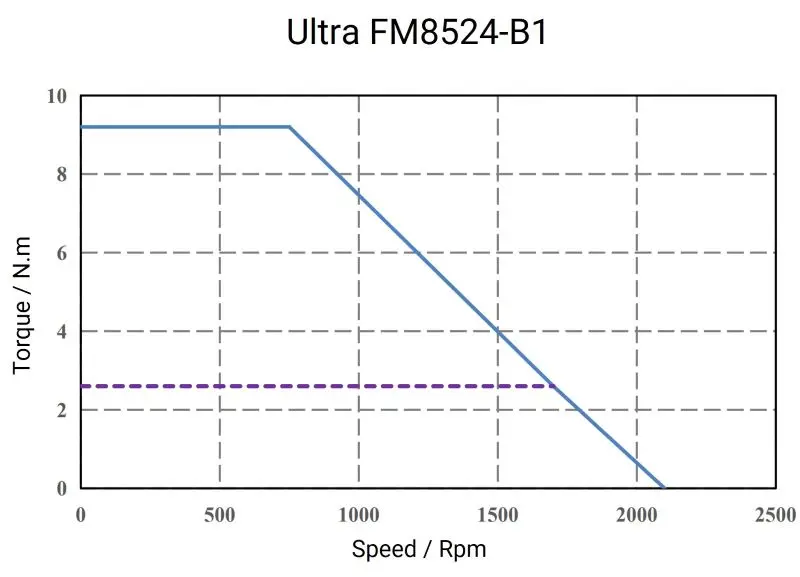

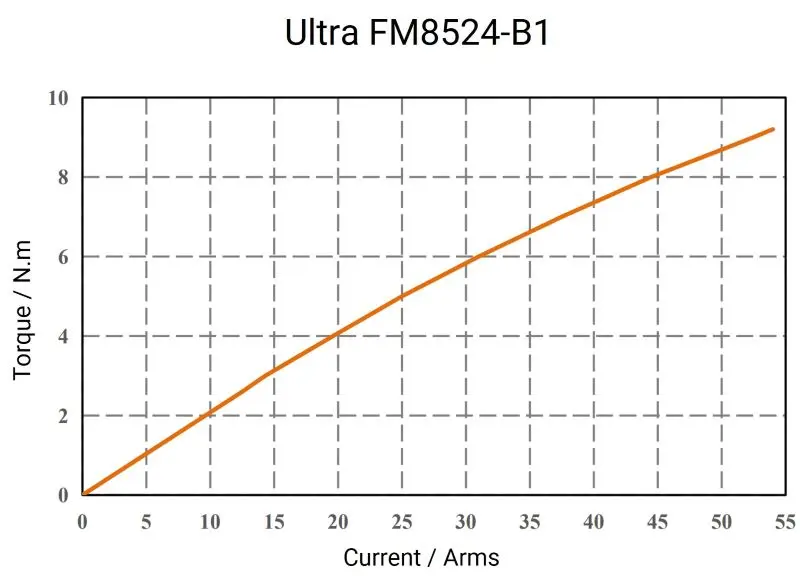

Motor Performance Curve
