Pro Frameless Motor 6020-A2

$189.00 – $280.00

48V | 0.94-2.91Nm | 4,000rpm | 390W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM6020-A2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.096
Rated Torque (Nm)	0.94	Back EMF Constant (Vrms/rpm)	0.0058
Rated Speed (rpm)	4,000	Terminal Resistance (mΩ)	290
Rated Power (W)	390	Terminal Inductance (mH)	0.267
Rated Current (Arms)	11.5	Torque Ripple	≤2%
Peak Torque (Nm)	2.91	Number of Pole Pairs	10
Max Speed (rpm)	4,000	Torque to Weight Ratio (Nm/Kg)	13.35
Peak Current (Arms)	44	Weight (g)	218
Rotor Inertia (kgcm²⁾	0.24	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	60.0
Rotor Inner Diameter d/(mm)	36.0
Rotor Length I/(mm)	20.0
Stator Lam Length L’/(mm)	20.6
Stator Length L/(mm)	26.0max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	59.0max

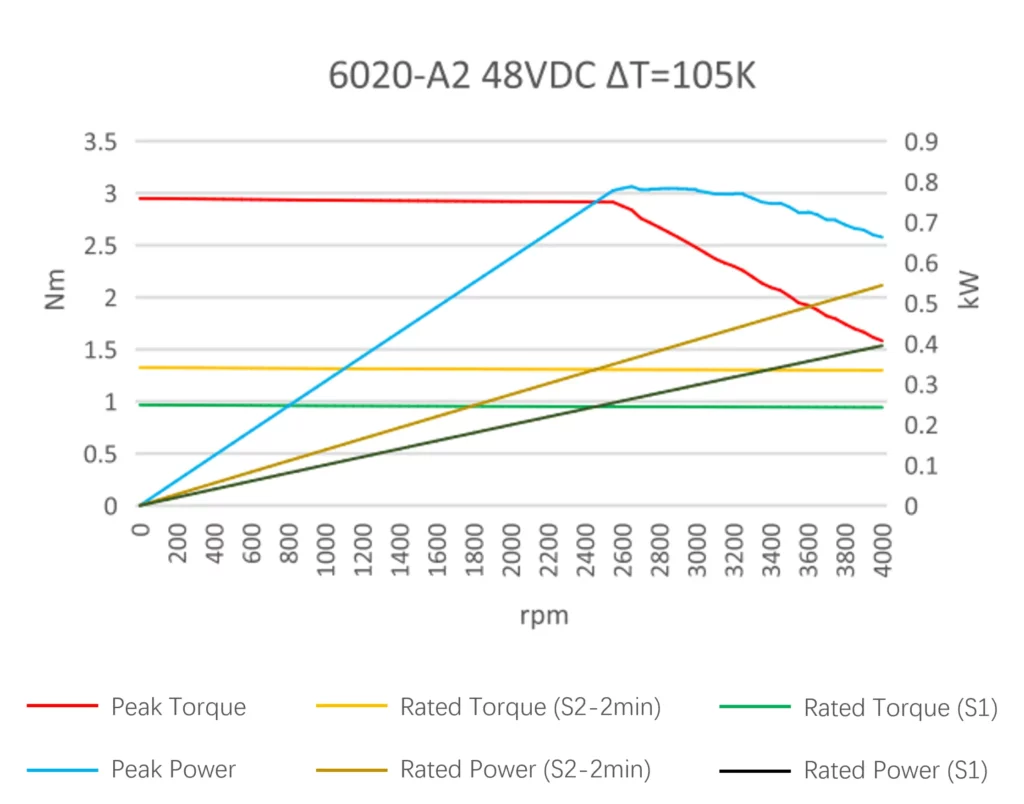

Motor Performance Curve

6020-A2
