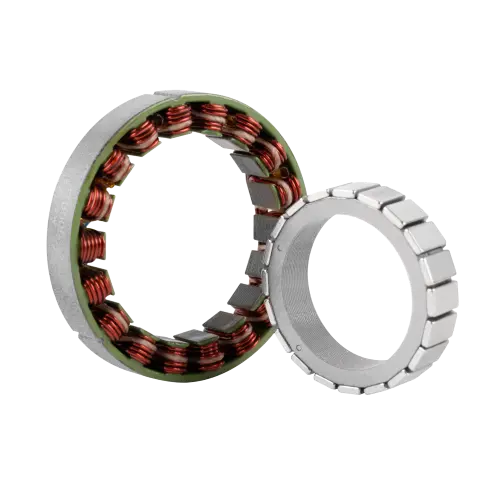

60-70

Pro Frameless Motor 6020-B2

$189.00 – $280.00

48V | 0.9-2.94Nm | 6,000rpm | 570W

This frameless dc motor features High torque density
High power density
Low torque ripple
Designed for large-scale applications
Better balance between performance and cost
Supports installation of Hall sensors and temperature sensors.
Provides a 1-year warranty.
Supports small batch prototype orders, with better pricing for large orders.
Customizable.
Delivery in 15-25 business days.

Customization Options

Standard

With PT1000 Sensor

With Hall Sensor

With PT1000 Sensor and Hall Sensor

SKU: ProFM6020-B2 Category: Frameless Motors

Register or log in to get a quote online directly.

Description

Specifications

Performance Data

Rated Voltage (V)	48	Torque Constant (Nm/Arms)	0.065
Rated Torque (Nm)	0.9	Back EMF Constant (Vrms/rpm)	0.0039
Rated Speed (rpm)	6,000	Terminal Resistance (mΩ)	146
Rated Power (W)	570	Terminal Inductance (mH)	0.12
Rated Current (Arms)	16	Torque Ripple	≤2%
Peak Torque (Nm)	2.94	Number of Pole Pairs	10
Max Speed (rpm)	6,000	Torque to Weight Ratio (Nm/Kg)	13.49
Peak Current (Arms)	64	Weight (g)	218
Rotor Inertia (kgcm²⁾	0.24	Insulation Class	F

Data may change with product updates.

Mounting Dimension

frameless motor size chart

Stator Outer Diameter D/(mm)	60.0
Rotor Inner Diameter d/(mm)	36.0
Rotor Length I/(mm)	20.0
Stator Lam Length L’/(mm)	20.6
Stator Length L/(mm)	26.0max
PCB Diameter G/(mm)	-
Winding Head Diameter g/(mm)	59.0max

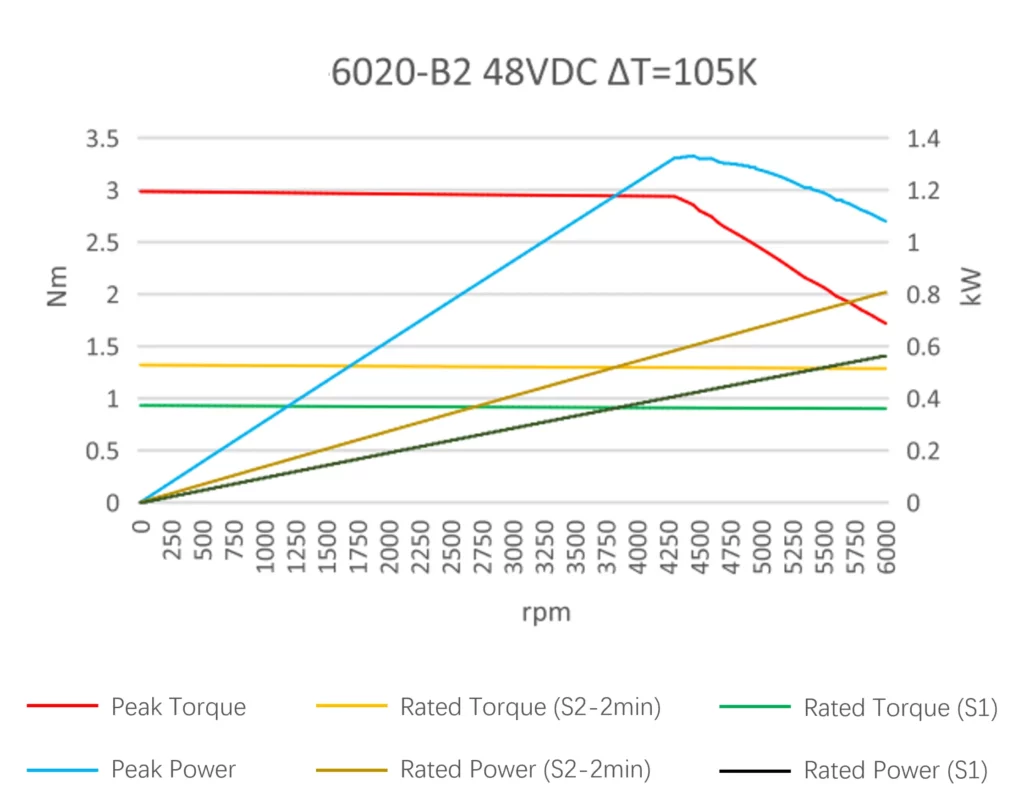

Motor Performance Curve

6020-B2-1
